Wine Concept and How It Works

Wine (Wine Is Not an Emulator) is a compatibility layer that allows Windows programs to run on UNIX-compatible operating systems such as Linux, macOS, and BSD. On Ubuntu 24.04 LTS, it provides a way to run many Windows applications without installing Windows itself. It is an open-source project started by Bob Amstadt and Eric Youngdale in 1993 and now has more than 30 years of development history. The name is a recursive acronym chosen to emphasize that Wine is not a traditional emulator.

Unlike a virtual machine or traditional emulator, Wine does not run a full copy of Windows. Instead, it translates Windows API calls in real time into POSIX-compatible system calls. Virtualization software like VirtualBox or VMware runs a complete Windows operating system in a virtual environment and uses far more system resources. Wine translates the API (Application Programming Interface) calls used by Windows programs into a form the Linux system can understand, which often results in near-native performance. For example, when a Windows program calls the CreateFile function to open a file, Wine converts it to the Linux open system call and executes it.

Key Features and Benefits of Wine

Wine operates without requiring a separate virtual machine or Windows license, efficiently using system resources with less memory usage and faster program execution compared to virtualization methods. It supports graphics APIs such as DirectX, OpenGL, and Vulkan, enabling Windows games to run. Valve’s Proton (based on Wine) has made many Steam games playable on Linux. Various Windows-only programs such as Microsoft Office, Adobe products, and business software can be used on Ubuntu, making Wine an essential tool for users considering switching to Linux.

Limitations of Wine

Not all Windows programs work perfectly in Wine. Programs that require kernel-level drivers (games with anti-cheat systems, programs that directly control hardware) or programs using the latest Windows APIs may not run or may encounter errors. The Wine project continuously improves Windows API compatibility, but the Wine development team faces the challenge of keeping up with each new Windows version released by Microsoft. You can check the Wine compatibility of specific programs in the WineHQ database (https://www.winehq.org/search), where each program is rated as Platinum (perfect), Gold (perfect after configuration), Silver (minor issues), Bronze (serious issues), or Garbage (cannot run).

Installing Wine on Ubuntu 24.04 LTS

1. System Preparation

Before starting the Wine installation, it is important to update the system to the latest state. This refreshes package repository information and upgrades existing packages to prevent dependency conflicts.

sudo apt update
sudo apt upgrade

apt update refreshes package repository metadata to fetch the latest package lists, and apt upgrade upgrades installed packages to their latest available versions.

Enable 32-bit Architecture Support

Many Windows programs and games are compiled as 32-bit, so you must enable multi-architecture support to install and run 32-bit libraries on 64-bit Ubuntu 24.04 LTS. Ubuntu has only the 64-bit (amd64) architecture enabled by default, and the i386 (32-bit) architecture must be manually added.

sudo dpkg --add-architecture i386

This command adds the i386 architecture to the dpkg package management system, allowing you to install 32-bit packages with the apt command. Wine internally uses numerous 32-bit libraries, making this step essential. Skipping it will cause dependency errors during Wine installation.

2. Adding the WineHQ Official Repository

While Ubuntu’s default repository includes Wine, the official WineHQ repository lets you choose between stable releases and newer builds, and it also delivers updates more quickly. WineHQ is the official website and package source for the project and provides three Wine versions: Stable, Development, and Staging.

Add GPG Key

You must add WineHQ’s GPG (GNU Privacy Guard) public key to the system to verify the trustworthiness of the package repository. This confirms that the packages you download are genuine and signed by WineHQ, preventing man-in-the-middle attacks or malicious package installations.

sudo mkdir -pm755 /etc/apt/keyrings
sudo wget -O /etc/apt/keyrings/winehq-archive.key https://dl.winehq.org/wine-builds/winehq.key

The first command creates the /etc/apt/keyrings directory, with the -p option creating parent directories and the -m755 option setting appropriate permissions. The second command downloads WineHQ’s GPG key and saves it to that directory. Since Ubuntu 24.04, using the /etc/apt/keyrings directory is recommended for enhanced security.

Add Wine Repository File

Add WineHQ repository information to the system. The lsb_release -sc command automatically detects the codename (noble) of the current Ubuntu version and configures the repository for that version.

sudo wget -NP /etc/apt/sources.list.d/ https://dl.winehq.org/wine-builds/ubuntu/dists/$(lsb_release -sc)/winehq-$(lsb_release -sc).sources

For Ubuntu 24.04 LTS (codename: noble), this command downloads the winehq-noble.sources file. The -N option downloads the file only when the server has a newer version, and the -P option specifies the save location. The downloaded .sources file uses the DEB822 repository format, which is standard in Ubuntu 22.04 and later.

3. Installing Wine

Since you added a new repository, update the package list again to fetch package information from the WineHQ repository, then install the stable version of Wine.

sudo apt update
sudo apt install --install-recommends winehq-stable

The apt update command refreshes package metadata for all repositories, including the newly added WineHQ repository. winehq-stable refers to WineHQ’s stable package. The --install-recommends option tells apt to install additional packages recommended by Wine. These can include Mono (for Windows .NET compatibility), Gecko (for Internet Explorer compatibility), graphics drivers, and audio libraries that many Windows programs rely on.

Choosing a Wine Version

WineHQ provides three versions of Wine, each with a different balance between stability and cutting-edge features.

  • winehq-stable: The stable version undergoes thorough testing before release and is recommended for production environments or general users. It may lack the latest features but guarantees stability.
  • winehq-devel: The development version includes the latest features and bug fixes but may introduce new bugs, making it suitable for testing purposes or users who need the latest features.
  • winehq-staging: The experimental version includes experimental patches not yet merged into the main branch and should only be used when needed for specific game or program compatibility.

Generally, installing winehq-stable is the safest choice. You can switch to other versions later with commands like sudo apt install winehq-devel.

4. Wine Initial Configuration

Once Wine installation is complete, you must initialize the Wine environment and configure settings. Use the winecfg command to launch the Wine configuration tool.

winecfg

When you run this command for the first time, Wine creates a ~/.wine directory in your home directory and builds the default Windows environment. This directory is called a Wine prefix and includes a virtual file system corresponding to Windows’ C:\ drive and registry files. Inside it are directories such as C:\windows, C:\Program Files, and C:\users, giving Windows programs the environment they expect. Program files and settings are then stored within that prefix.

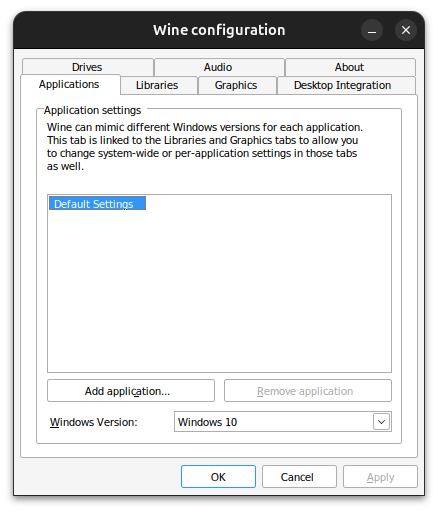

Wine Configuration Screen

Key Options in Wine Configuration Tool

The winecfg window is organized into tabs, each covering a different area of configuration.

  • Applications tab: Configure the Windows version. You can select which version Wine should emulate (Windows XP, Vista, 7, 8, 10, or 11). Some programs require specific Windows versions, so you can set different versions for different programs.
  • Libraries tab: Set the loading order for DLL (Dynamic Link Library) files. You can choose whether to use Wine’s built-in DLLs or native Windows DLLs. Some programs require specific DLLs to run in native mode for proper operation, making this setting important.
  • Graphics tab: Adjust screen resolution, virtual desktop mode, and DPI settings. Enabling virtual desktop mode makes Windows programs run in a separate window, isolated from the Linux desktop.
  • Audio tab: Select the audio driver. Options include ALSA, PulseAudio, and OSS. On Ubuntu 24.04, using PulseAudio or PipeWire is typical.

5. DirectX Library Configuration

Many Windows programs and games use DirectX to render graphics. Wine partially supports DirectX, but some DirectX DLL files must be configured to load explicitly. The d3dx11_43.dll file, related to Direct3D 11, is especially important for many modern games and 3D applications.

Configure DirectX DLL Override

Configuring specific DLLs to load in native mode can improve compatibility because Wine will try the original Windows DLLs first. The setup looks like this.

  1. Launch the Wine configuration tool.
winecfg
  1. Navigate to the “Libraries” tab.
  2. In the “New override for library” dropdown menu, enter or select d3dx11_43.

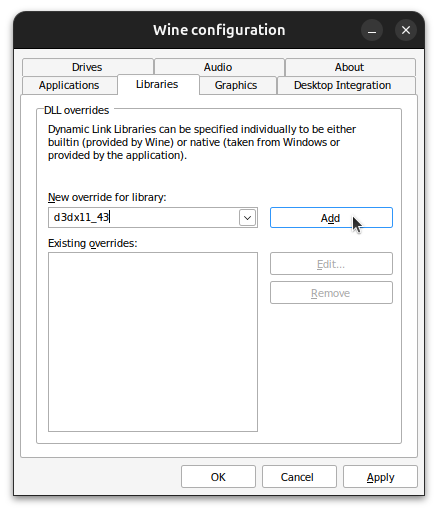

Wine Configuration Screen

  1. Click the “Add” button to add it to the override list.
  2. Click “Apply” and save the settings with “OK”.

With this configuration, Wine loads d3dx11_43.dll in Native then Builtin mode, meaning it first tries to use the original Windows DLL and falls back to Wine’s built-in implementation if unavailable.

Install Additional DirectX Components

To use more DirectX features, you can install additional components using Winetricks. Winetricks is a script tool that automatically installs libraries and settings frequently needed in Wine.

sudo apt install winetricks
winetricks d3dx9 d3dx10 d3dx11_43 dxvk

This command installs core libraries for DirectX 9, 10, and 11, along with DXVK (a layer that converts DirectX to Vulkan). DXVK is known to significantly improve performance for DirectX 11 and 12 games.

6. Running Windows Programs

Once Wine configuration is complete, you can run Windows executable files (.exe) directly. You can either pass the program path to the wine command in the terminal or open the file from the file manager.

wine program.exe

For example, to run a setup.exe installation file in the Downloads folder, enter the following.

wine ~/Downloads/setup.exe

When a program is installed, Wine usually places it in the ~/.wine/drive_c/Program Files directory. Depending on how the installer behaves, it may also create shortcuts in the menu or on the desktop.

Command-line Options and Environment Variables

Wine supports various environment variables and options for controlling program execution. Some of the most useful ones are below.

  • WINEPREFIX: Specifies the Wine prefix path, allowing use of multiple independent Wine environments.
WINEPREFIX=~/.wine-custom wine program.exe
  • WINEDEBUG: Controls debug message output. Setting to -all hides all debug messages.
WINEDEBUG=-all wine program.exe
  • WINEARCH: Specifies Wine architecture, where win32 means 32-bit and win64 means 64-bit.
WINEARCH=win32 WINEPREFIX=~/.wine32 winecfg

Running from File Manager

Double-clicking an .exe file in Ubuntu’s file manager (Nautilus) often launches Wine automatically because Wine usually registers the needed file associations during installation. If that does not work, right-click the file, select “Open with another application,” and choose Wine.

Troubleshooting

When Programs Don’t Run

If a program does not run or throws errors, start with the following checks.

  • Check WineHQ AppDB: Visit https://appdb.winehq.org to check compatibility information and special settings for the program.
  • Change Windows Version: Change to a different Windows version setting in winecfg.
  • DLL Override: Configure specific DLLs to load in native mode.
  • Check Debug Logs: Generate detailed logs with WINEDEBUG=+all wine program.exe 2>&1 | tee wine.log to identify the error cause.

When Korean Characters Are Broken

If Korean characters appear broken in Windows programs, installing Windows Korean fonts solves the problem.

winetricks corefonts cjkfonts

This command installs Windows default fonts and CJK (Chinese, Japanese, Korean) fonts in the Wine environment.

When Performance Is Slow

If a program or game has slow performance, installing DXVK to convert DirectX to Vulkan can significantly improve performance.

winetricks dxvk

Conclusion

Installing Wine on Ubuntu 24.04 LTS makes it possible to run many Windows-only programs in a Linux environment. It allows you to use business software, games, and utilities without a full virtual machine, which is useful in mixed environments where Linux and Windows software need to coexist. Wine is a mature project with more than 30 years of development history, and its Windows API compatibility continues to improve, especially with related tools like Valve’s Proton. Not every Windows program will work perfectly, but many of them can be made usable with the right settings and a few additional components. The WineHQ AppDB and the community are often the best place to look when a specific program needs extra tuning.
